Real time GPS Tracker for vehicle with GPIO Port TK121-Eelink

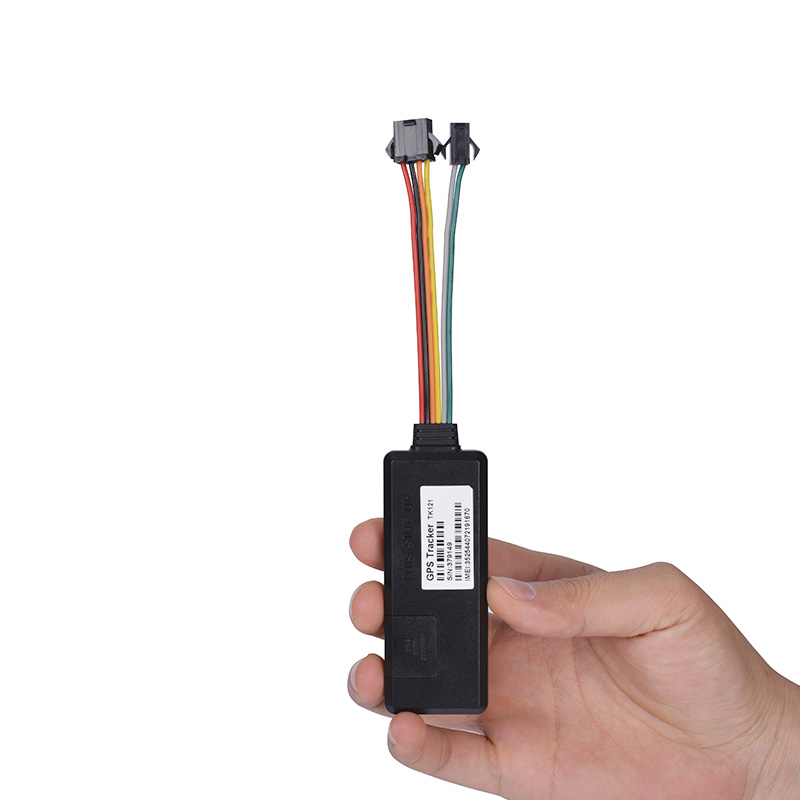

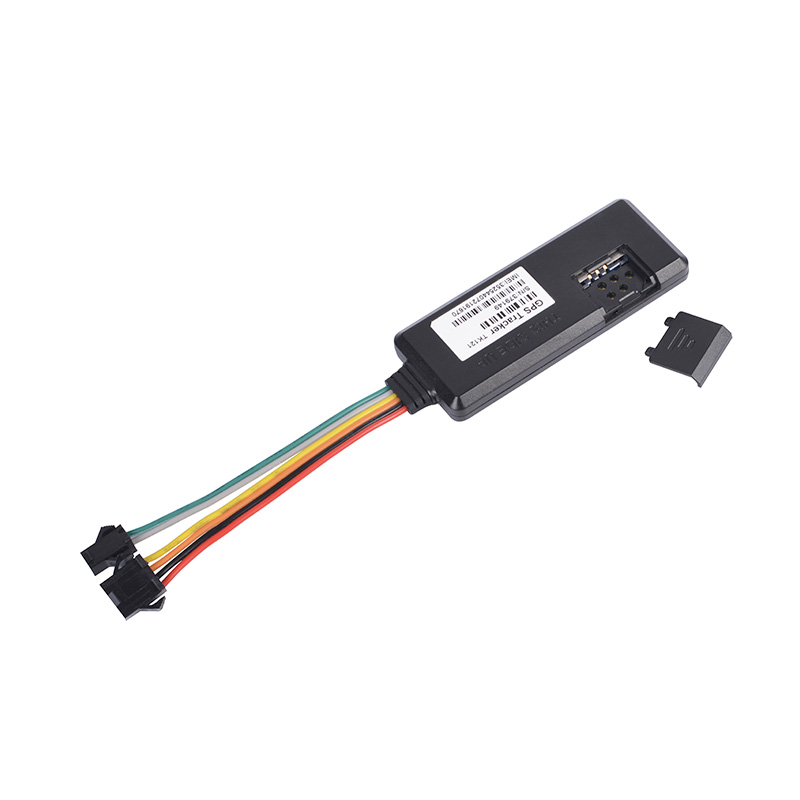

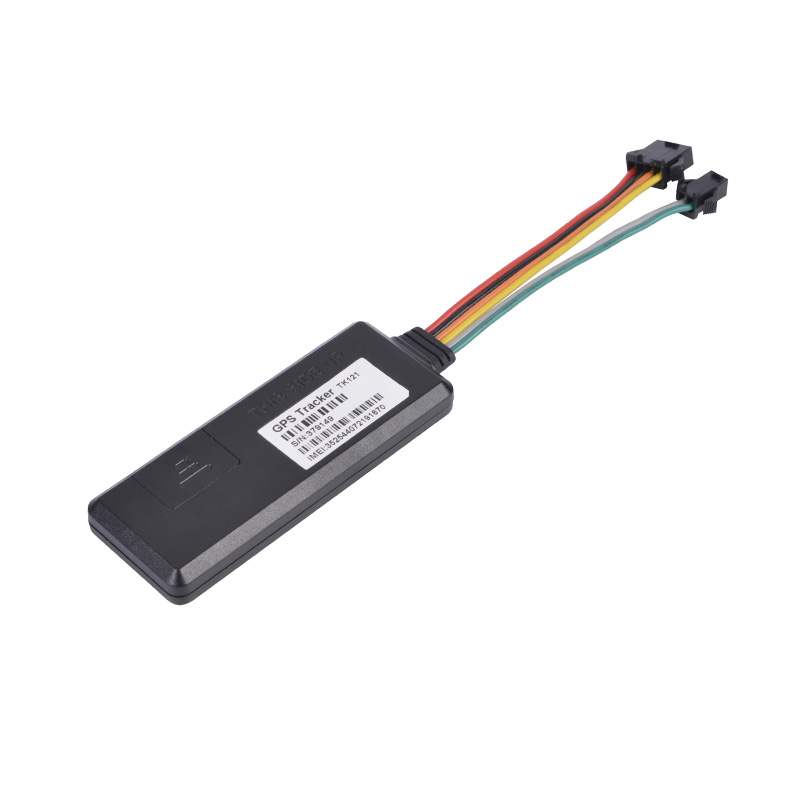

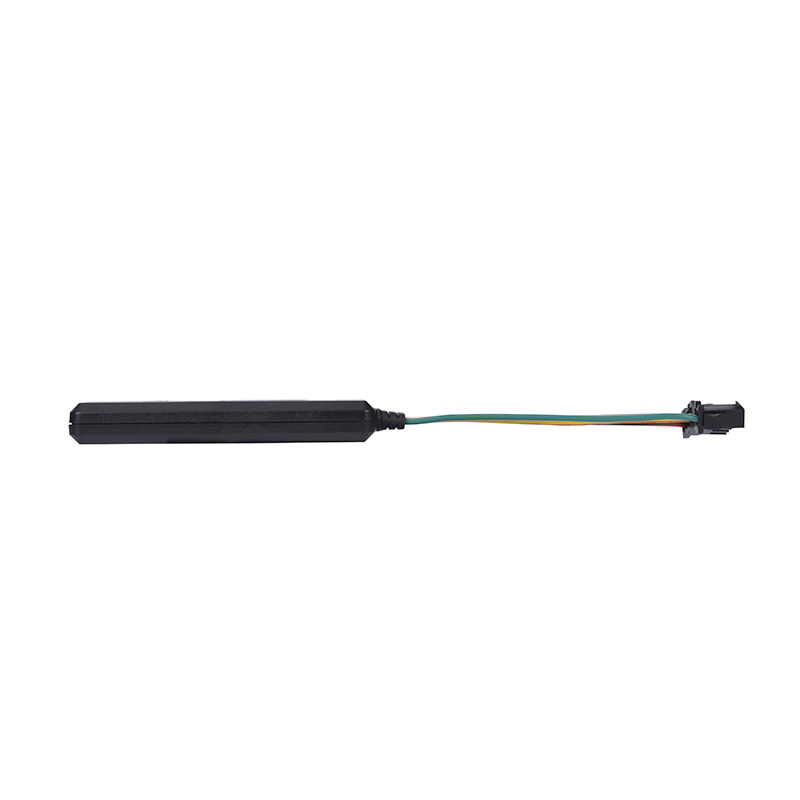

Basic info of Real time GPS Tracker TK121

Model No.: TK121

Type: GPS Tracker

Use: Automotive

Operating Principle: Interferometric Type

Carrier Frequency: Dual-Frequency

Certification: ISO2000, ISO14001, ISO/TS16949

Working Voltage: 6-36V DC

Working/Standby Current: <30mA@12V / <10mA@ 12V

GPS Positioning Accuracy: 5-15m

GSM Positioning Accuracy: About 200 M

GSM Frequency: 850/900/1800/1900MHz

Hot/Warm/Cold Start Time: <3s，<15s，<60s

Battery Capacity: 70mAh

Dimensions (mm): 85.8(L)X30.6(W)X10.8(H)

Operating Temperature: -20℃~70℃

Operating Humidity: 20%～80%RH

FEATURES

■ Supports quad bands,i.e. 850/900/1800/1900MHz, universal in the world.
■ Wide Input Voltage:6-36V DC.
■ GPS precise positioning with A-GPS and uploaded by GPRS regularly, Supports real-time tracking and history track playback.
■ Keelin Tracking Service Platform, Keelin APP Client, SMS query
■ Built-in battery, Power disconnect alarm & Low battery alarm.
■ Supports multiple alarm, acceleration sensor can be added (B models, optional component), so as increase vibration, collision and falling alarm.
■ Supports ACC status checking and vehicle status notifying.
■ Relay to remotely control the vehicle..
■ SOS button for SOS call.
■ MIC to remotely monitor.
■ Multiple protocol support, can be integrated to platform of customers

■ OTA upgrade firmware.

The description of Real time GPS Tracker TK121

The TK121 has the feature that remote vehicle disabling systems with cut engine, cut oil.TK121 is a GPS Tracker that installs behind the dashboard.

To know more about the features of remotely shut off engine for car

The tracker updates times could setup by you and can be installed almost all round the vehicle. The TK121gps tracking remote vehicle disabling systems is used to remotely disable the ignition from any location using your phone or computer.

The Hard Wire Tracker will provide up to a one year report history of all events including the miles per hour, ignition on/off, motion detected and stopped, as well as several other events. GPS tracker TK121 is a tracking device which is based on GSM /GPRS network and GPS satellite positioning system.

It can be set multiple functions of positioning, tracking, monitoring, alarms etc. Eelink GPS tracker is based on GSM/GPRS network and GPS global positioning system for precise position of vehicle,valuables,children, assets.Each GPS tracker need to install smart SIM card.

The SIM card receive signals from satellites per 30 seconds( Timer could be set) and transmit signals by GSM/GPRS network to our server. User could view the real time location and historical route of vehicle on google map by web browser/ mobile android /iOS APP, SMS.

Logistics enterprises
Fleet management
Bus management
Insurance
Power
Oil
Telecommunications
Taxi
Car sales
Rental car
vehicle maintenance
technology researchers

Vehicle GPS Tracking Device Solutions

Parameter of GPS tracker TK121

Voltage	12VDC/24VDC/36VDC
Work current	<30mA@12V
Standby Current	<10mA@12V
GPS positioning accuracy	5-15m
GSM Positioning Accuracy	About 200 m
GPS Frequency	1575MHz
GSM Frequency	850/900/1800/1900MHz
Hot/Warm/Cold Start time	<3s,<15s,<60s
Battery Capacity	70mah
Dimensions (mm)	85.8(L)X30.6(W)X10.8(H)
Operating Temperature	-20℃~70℃
Operating Humidity	20%~80%RH
Weight	33g

PLATFORM/APP:
■ Real-time Tracking
■ Route Play Back
■ Cut Oil (Need Relay)
■ SOS Alarm (Need SOS Cable)
■ Listen (Need Microphone)
■ Vibration Alarm
■ Collision / Falling Alarm
■ Speed Alarm
■ Geo-fence Alarm
■ Power Disconnect Alarm

■ Low Battery Alarm

FUNCTION EXTENSION:
■ 1. Default interface: Microphone input port for remote monitoring
■ 2. Can be extended: ADC input port , used for temperature and oil detection
■ 3. Can be extended: External lithium battery port ,used for High capacity battery
■ 4. Can be extended: UART expansion port (TTL level), RS232 serial port expansion application

Hardware Specification
Communication System GPRS/GSM
Frequency GSM 850/900/1800/1900MHz

Networks GPRS
Output Power Class 4 (33dBm ±2dB) for GSM 850/900MHz
Class 1 (30dBm ±2dB) for GSM 1800/1900MHz

Receive Sensitivity -106dBm/GSM 900MHz,GSM 1800MHz

GPS
GPS Chip MTK high sensitivity GPS chip
Frequency L1,1575.42MHz C/A code
Channels 66
Location Accuracy <10 meters
Tracking Sensitivity - 165dBm
Acquisition Sensitivity - 148dBm
Location time Hot start:≤2sec(open sky)
Cold start:≤35sec(open sky)
Main Specifications
Monitoring Scope ≤ 5M
Antenna Built-in GPS ceramic antenna; GSM quad-ban antenna
LED Indicator GPS(blue), GSM(green), Power(red)
Operating Voltage 9-36VDC
Operating Temperature -20℃~70℃
