mini car GPS tracker support shut off engine for truck tracking (TK116)

Manufacturer:	EELINK
Mfr No:	TK116
Location:	ShenZhen China
Type:	Car GPS Tracker
Weight:	45g
Support Network:	2G GSM

TK116 is our best seller with its multifunctional features and its low defective rate. It can meet most of requirments to GPS tracking device. Wire type is different from wireless type, it's biggest advantdage is hiden in the vehicle, you can not find it from the surface of the car, because its small size too. It can get power from car itself. At the same time, it also have a small lithum battery inside, this battery can only support disconnect alarm when the car theft try to cut it.

Inquiry Us + Sample Order

Description Features Specifications Accessories

The description of GPS car tracker TK116

GPS tracker for Car-TK116 has a wide range of industrial and commercial application.It can be hidden in the car to avoid found.It is multi-functional GPS tracker which can meet requirements of clients.SOS, Mic, relay is optional if the customer needs.

SOS- call for help.Mic- listening what is happening inside the car.Relay- remotely cut off oil. Eelink GPS tracker for car is based on GSM/GPRS network and GPS global positioning system for precise position of vehicle,valuables,children, assets.

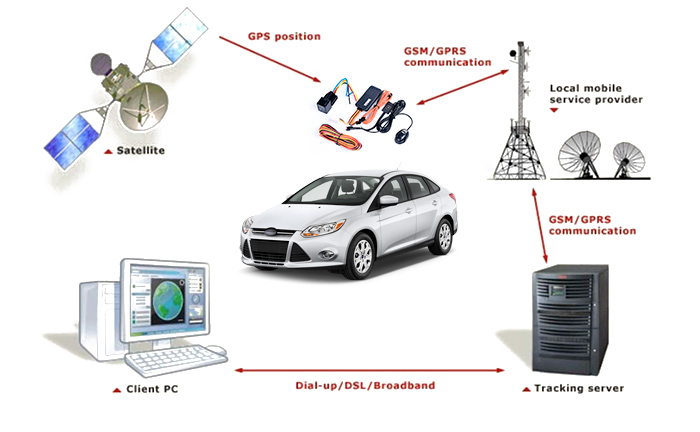

Each GPS tracker need to install smart SIM card. The SIM card receive signals from satellites per 30 seconds( Timer could be set) and transmit signals by GSM/GPRS network to our server. User could view the real time location and historical route of vehicle on google map by web browser/ mobile android /iOS APP, SMS.

Typical application of GPS car tracker TK116

Logistics enterprises
Fleet management
Bus management
Insurance
Power
Oil
Telecommunications
Taxi
Car sales
Rental car
vehicle maintenance
technology researchers

Vehicle GPS Tracking Device Solutions

Typical application of GPS car tracker TK116

If you are looking for Vehicle GPS Tracking Device Solutions, Live GPS Tracker for Car, Real Time GPS Vehicle Tracking, Best GPS Tracking Device for Cars, TK116 is your best choice .

Additional informations

Packaging: Industrial Packaging Or Box Packaging

Productivity: 100000 Piece/Pieces per Month

Brand: Keelin

Transportation: Air

Place of Origin: Shenzhen,China

Supply Ability: 300000 Piece/Pieces per Month

Certificate: CE/FCC/CCC

HS Code: 8526911000

Port: Shenzhen,Hongkong,Guangzhou

PLATFORM/APP:

■ Real-time Tracking
■ Route Play Back
■ Cut Oil (Need Relay)
■ SOS Alarm (Need SOS Cable)
■ Listen (Need Microphone)
■ Vibration Alarm
■ Collision / Falling Alarm
■ Speed Alarm
■ Geo-fence Alarm
■ Power Disconnect Alarm

■ Low Battery Alarm

FUNCTION EXTENSION:
■ 1. Default interface: Microphone input port for remote monitoring
■ 2. Can be extended: ADC input port , used for temperature and oil detection
■ 3. Can be extended: External lithium battery port ,used for High capacity battery
■ 4. Can be extended: UART expansion port (TTL level), RS232 serial port expansion application

Other Specification

GPS Chip MTK high sensitivity GPS chip
Frequency L1,1575.42MHz C/A code
Channels 66
Location Accuracy <10 meters
Tracking Sensitivity - 165dBm
Acquisition Sensitivity - 148dBm
Location time Hot start:≤2sec(open sky)
Cold start:≤35sec(open sky)
Main Specifications
Monitoring Scope ≤ 5M
Antenna Built-in GPS ceramic antenna; GSM quad-ban antenna
LED Indicator GPS(blue), GSM(green), Power(red)
Operating Voltage 9-36VDC
Operating Temperature -20℃~70℃
Operating Humidity 5%~95%,non-dense
Built-in Battery 450mAh/3.7Vindustrial lithium polymer battery
Standby 4 hours
Dimension 87(L) ×41.6 (W) ×12 (H) mm

ADVANTAGES of GPS Vehicle Tracker TK116

	SOS/Over-speed/Geo-fence Alert
	Remote Engine/Door Control		Accurate Real Time/LBS Tracking
	Wireless Firmware Upgrade(OTA)		Two Way Communication
	One Wire ®Protocol Supported		Multiple External Equipment Supported
	Built-in 3 axis G-sensor for MotionDetect		4M Internal Backup Log Saving

FEATURES OF GPS car tracker TK116

■ Supports quad bands,i.e. 850/900/1800/1900MHz, universal in the world.

■ Wide Input Voltage:6-36V DC.

■ GPS precise positioning with A-GPS and uploaded by GPRS regularly, Supports real-time tracking and history track playback.

■ Keelin Tracking Service Platform, Keelin APP Client, SMS query

■ Built-in battery, Power disconnect alarm & Low battery alarm.

■ Supports multiple alarm, acceleration sensor can be added (B models, optional component), so as increase vibration, collision and falling alarm.

■ Supports ACC status checking and vehicle status notifying.

■ Relay to remotely control the vehicle.

■ SOS button for SOS call.

■ MIC to remotely monitor.

■ Multiple protocol support, can be integrated to platform of customers

■ OTA upgrade firmware.

Specifications of GPS Vehicle Tracker TK116

GPS Chip	UBLOX GPS, GNASS Chip
Antenna	Built-in GPS Patch antenna; UMTSS/HSPAantenna
GPS Positioning Accuracy	5m-15m (Depending on GPS Signal)
LBS Positioning Accuracy	~200m (Depending on density of base stations)
GPS Frequency	L1, 1575.42MHz C/A code
Network	UMTS/HSPA, GSM, GPRS, EDGE
Frequency bands	UMTS/HSPA 800/850/900//1900/2100 MHz
Frequency bands	GSM850/1900 and 900/1800 MHz Quad-band
GPRS	Class 12, TCP/IP
LED Indicator	GPS-Blue; GSM-Red
Memory	4MB for application and data storage
Hot/Warm/Cold Start	<3x, <15s, <60s
Built-in Battery	Embedded 150mAh battery for emergency alarm when removing main power
Standby	4 Hours
Work Current	<30 mA
Standby Current	<15 uA
Charger	5VDC/1A
IP Waterproof Level	IP65
Dimensions (mm)	89mm x 37mm x 12mm
Operating Voltage	9-72V DC
Environment Temperature	-20○C – 65○C
Environment Humidity	20% ~ 80% RH
Net Weight	45g

Default accessories: power wires

Optional accessories: Relay

Microphone

SOS button
