LTE CatM1/ioT rechargeable temperature GPS tracker for cold chain(GPT45-M)

Manufacturer:	Eelink
Demension:	95(L)X55.5(W)X22.7(H)
Color:	Case Grey/Rubber Yellow
Location:	ShenZhen,CHINA
GNSS Band:	GPS/BDS/GLONASS
Battery:	2550mAH
Voltage:	3.0-4.2V(battery)
Network Type:	LTE-CatM1/NB-ioT/EGPRS
USB Interface:	Type-C
SIM Card:	Nano-SIM
Built-in Air pressure:	Yes
Built-in light sensor:	Yes
Waterproof:	IP65
LTE CATM1 bands:	B1,B2,B3,B4,B5,B8,B12,B13,B14,B18,B19,B20,B25,B26,B27,B28,B66,B85

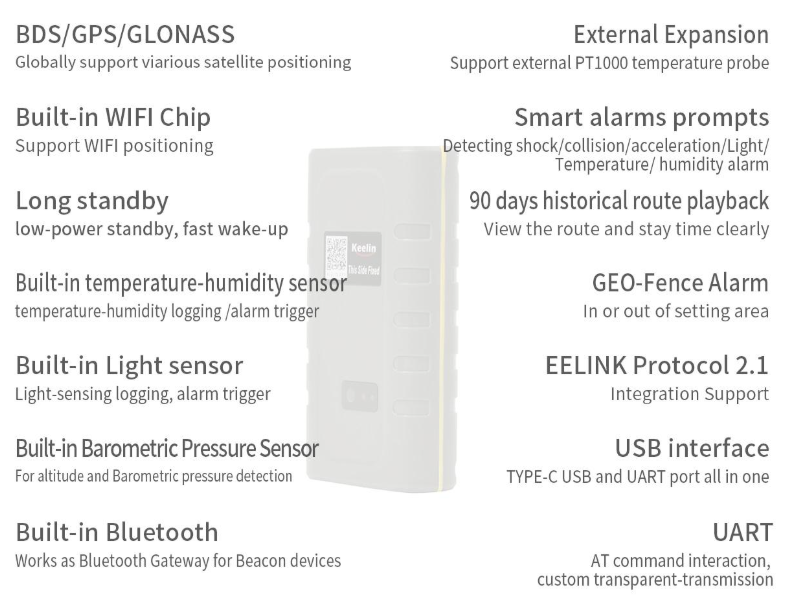

GPT45-M is a LTE CATM rechargeable GPS tracking device, it has built-in temperature/humidity sensor for cold chain monitoring.

It has a wide range of industrial and commercial applications, built-in high-capacity battery, light sensor ,motion sensor IP65 level waterproof. It is also wireless portable GPS tracker,can expand to multiple function.

Inquiry Us

Description Features Specifications Accessories

Description of GPT45-M

LTE CATM1/Nb-ioT wireless GPS tracker is a temperature GPS tracker for real-time tracking. Featuring Geo-fence alarms, it can expand to include an internal temperature sensor and an external humidity probe version. It has motion sensor, light sensor, and air pressure sensor , the ability to protect vehicle positioning and asset tracking, this device offers comprehensive monitoring and security measures. Also, it provide users standardized or customized system solutions, intelligent monitoring to meet the needs of different industries.

The device can be used in major industries include:

-1.Portable tracker for personal tracking

-2.Automotive Risk Control

-3. Fleet management

-4. Logistics Transportation

-5.Cold chain Monitoring

-6. Asset tracking

-7. Temperature monitoring

FUNCTION:

■ Speed Alarm
■ Geo-fence Alarm
■ Low Battery Alarm
■ Real-time Tracking
■ Route Play Back

■ Temperature Alarm

■Support Bluetooth for BLE beacons

■ Built-in light sensor for opening door detection

■ Crash/Falling/ Vibration/Speed Alarm

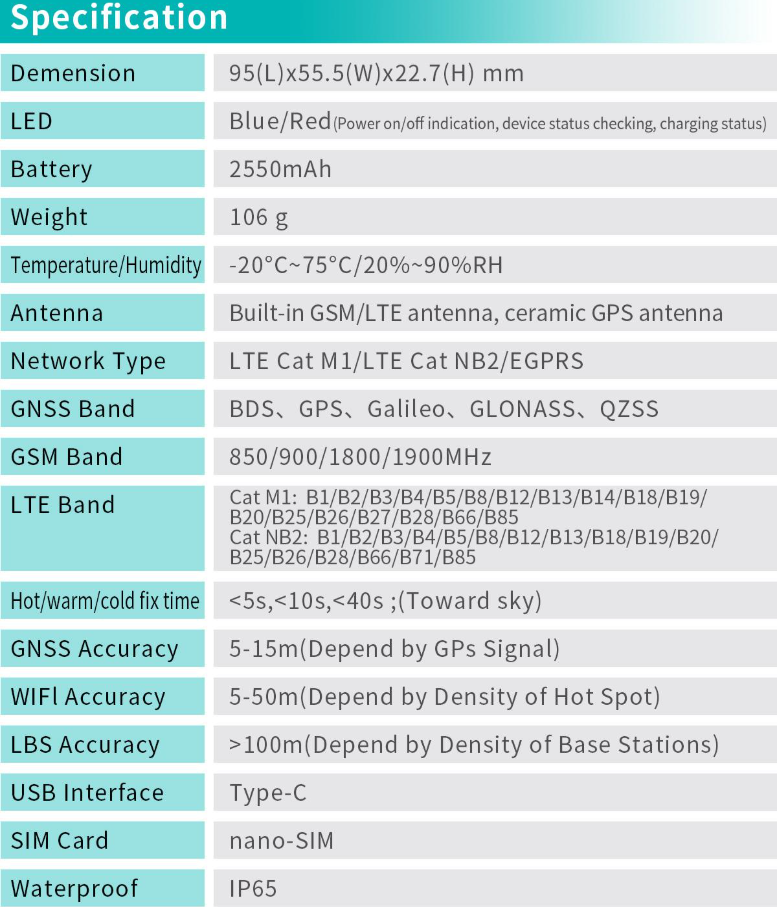

Features:

Dimension	95x55.5x22.7mm
LED	GPS(Blue),GSM/LTE(Red)
Battery	2550mAh
Antenna	Built-in LTE/GSM antenna, ceramic GPS antenna
LTE Band	LTE-CATM1:B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85 LTE-NB2: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B71/B85
GSM Band	GSM850/EGSM900/DCS1800/PCS1900
GPS Accuracy	5-15m(depend on GPS signal)
LBS Accuracy	>200m
GNSS	GPS/BDS/GLONASS

■ Support Global LTE CATM1 & NB2, GSM network

■ Support GPS/ Beidou/ Glonass. WiFi/ LBS for aiding.

■ Real time tracking,data uploaded by GPRS regularly, check by Web/APP/SMS

■ Web Tracking Service Platform, Mobile phone APP Client, SMS query
■ Low battery alarm,GEO-fence, Speed alarm
■ Built in Motion sensor, support various alarm.
■2550 mAh lithium battery, low battery alarm .
■ Waterproof IP65 level and dust proof, vehicle/ individual /cold chain/asset are applicable.
■ Eelink 2.3 protocol, multiple protocol support, can be integrated to platform of customers.

■ OTA upgrade firmware.

■USB connect with PC to configure device

■ Expansion(customized):

connect to temperature/humidity probe

■Built-in Air pressure sensor to read the current air pressure data

■Built-in light sensor for detecting door open

Optional Accessories:

Temperature/humidity probe

PT1000 low temperature probe
