Supports quad bands,i.e. 850/900/1800/1900MHz, worldwide used.
Wide Input Voltage:6-36V DC.
GPS + GSM (LBS) Tracking GPS precise positioning with A-GPS and feedback position via GPRS at setting times
Web browser platform, Smart phone app platform and SMS query.
Built-in battery, Power disconnect alarm & Low battery alarm.
Supports multiple alarm, acceleration sensor can be added (B models, optional component), so as increase
vibration, collision and falling alarm.
Supports ACC status checking and vehicle status notifying.
Use relay to remotely control the vehicle.
Use SOS button for SOS call.
Uses external microphone to monitor remotely.
Multiple protocol support, OTA upgrade program.

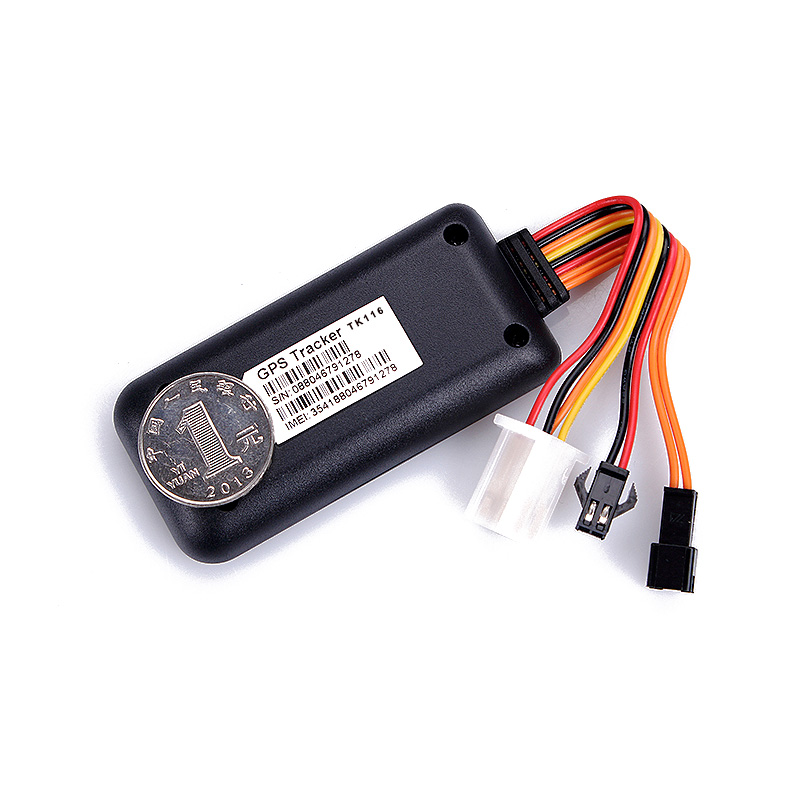

Mini size, easy to hide and install
Vibration / Collision / falling Alarm
Dimensions (mm): 79.5(L)X38.5(W)X10.5(H)
Work current: <30mA@12V
Standby Current: <10mA@12V
GPS positioning accuracy: 15m
GSM positioning accuracy: 100m
GPS Frequency: 1575MHz
GSM Frequency: 850/900/1800/1900MHz
Hot/warm/cold start time: <3s，<15s，<60s
Battery capacity: 200mAh
Operating temperature: -20℃~70℃
Operating humidity: 20%～80%RH
Net Weight: 45 g

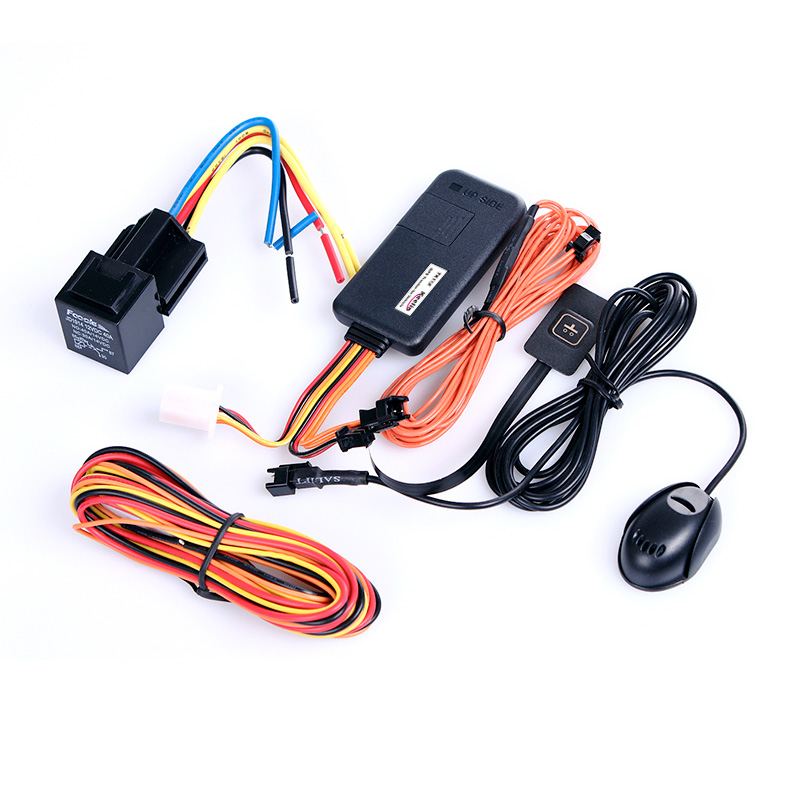

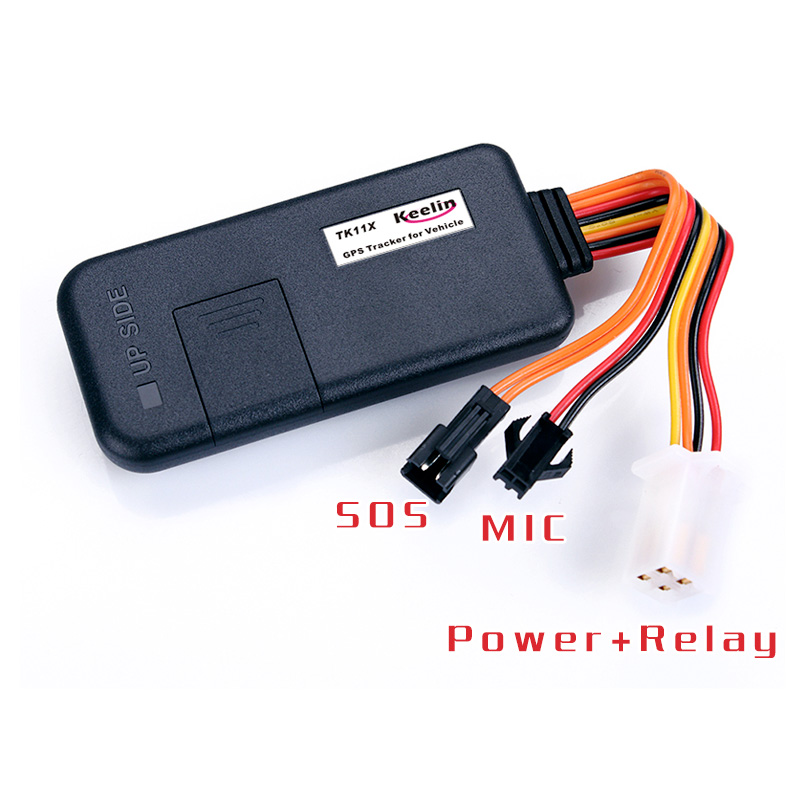

Relay/ Microphone/SOS Cable.These are optional accessories,not standard set, if you need any of them, please tell
the sales in advance. Function Extension
Default interface: Microphone input port for remote monitoring
Can be extended: ADC input port , used for temperature and oil detection
Can be extended: External lithium battery port ,used for long battery life
Can be extended: UART expansion port (TTL level), RS232 serial port expansion application
You can choose Keelin terminal monitoring platform or download APP by phone .It is both designed by EELINK, we can real time tracking and playback on the platform server or app.
Meanwhile you can use your own platform which can support multiple protocols. Platform website：www.keelin.com.cn, choose language at the right hand side and click demo button to experience
Car Tracking solution
Taxi management solution
Vehicle tracking solution
Trucking and logistics solution
Secure transportation solution
Service oriented transporter solution
Operation centric solution
School bus management solution
Employee commuting solution
Police and public safety solution
