TEMPERATURE DATA LOGGER DB06 USB TEMPERATURE MONITORING
TEMPERATURE DATA LOGGER DB06 USB TEMPERATURE MONITORING TEMPERATURE DATA LOGGER DB06 USB TEMPERATURE MONITORING TEMPERATURE DATA LOGGER DB06 USB TEMPERATURE MONITORING TEMPERATURE DATA LOGGER DB06 USB TEMPERATURE MONITORING
  • TEMPERATURE DATA LOGGER DB06 USB TEMPERATURE MONITORING

  • Manufacturer: EELINK
    Model No: DB06

    DB06 Data Logger is a recording device which collect temperature data over a period of time. it can be used in a lot of cold chain industries to improve the efficiency and management.


  • $9-$12
  • - +
  • Inquiry Us + Sample Order
  • Description Features Specifications

    DB06 Data Logger is a recording device which collect temperature data over a period of time. Depending on the application, it can be used in a lot of cold chain industries to improve the efficiency and management.

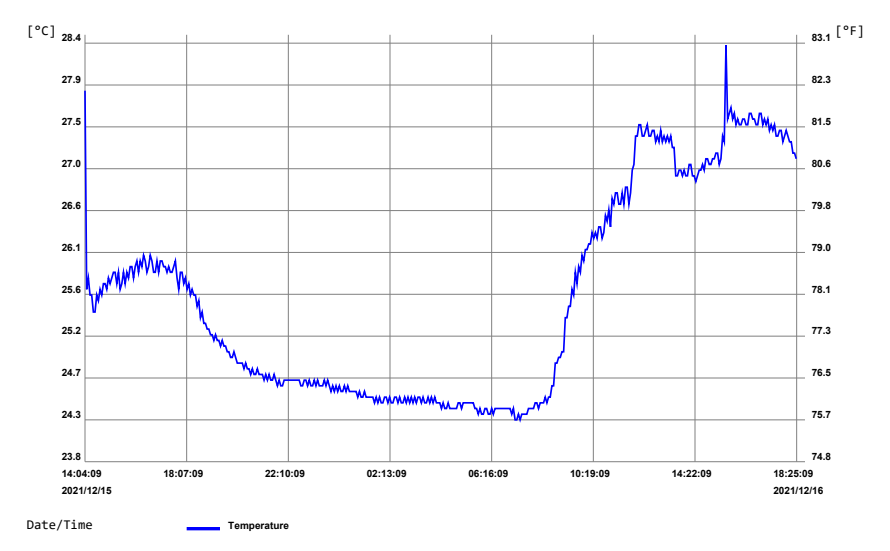

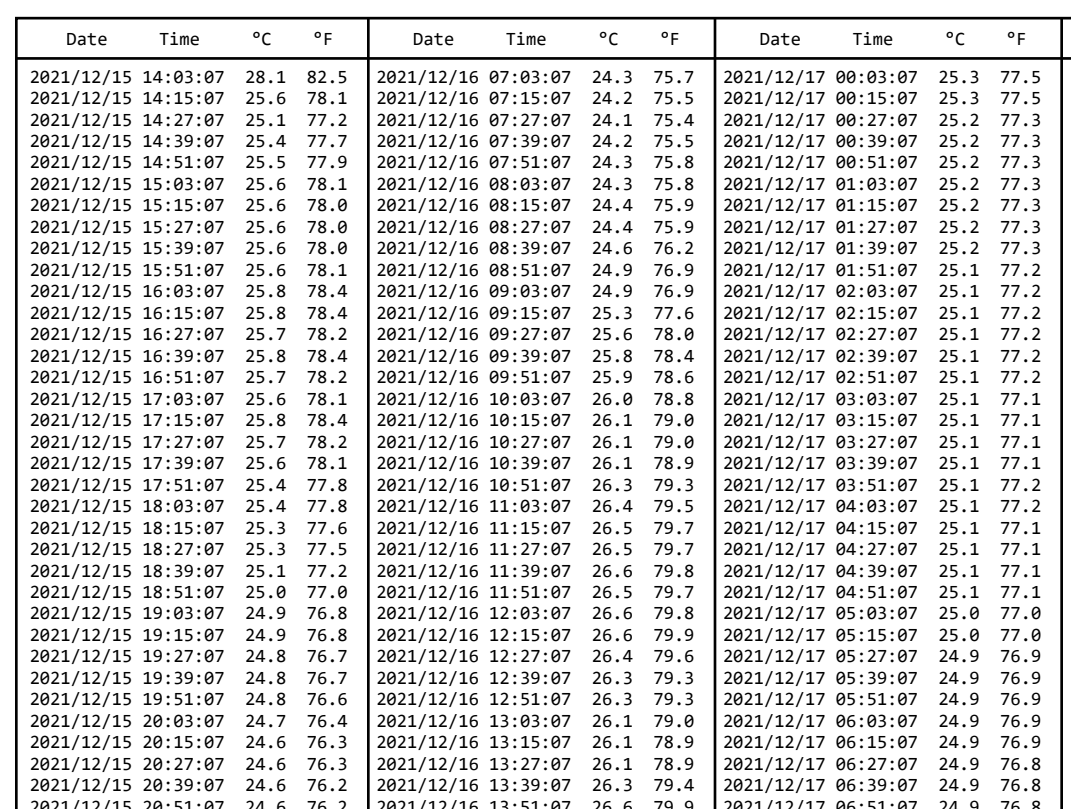

    DB06 Data Logger allow you to monitor temperature and record it in the memory. It’s easy to export and analyze the collected temperature data via PC included CSV & Trend chart.



    DB06 Data logger offer low-cost, stand-alone temperature data collection solution. Users can easily set up the logging interval and start-time, log data, and then download the data over USB to the computer. Logged data can then be graphed, printed, and exported to Excel. Each data logger is powered by a button battery which lasts for from 30~135 days.

    DB06 Data Logger allow you to monitor temperature and record it in the memory. It’s easy to export and analyze the collected temperature data via PC included CSV & Trend chart.
    Type Disposable
    Function Temperature record
    Size 75.1*22.8*6.8mm
    Button One (start)
    LED Red (Active)

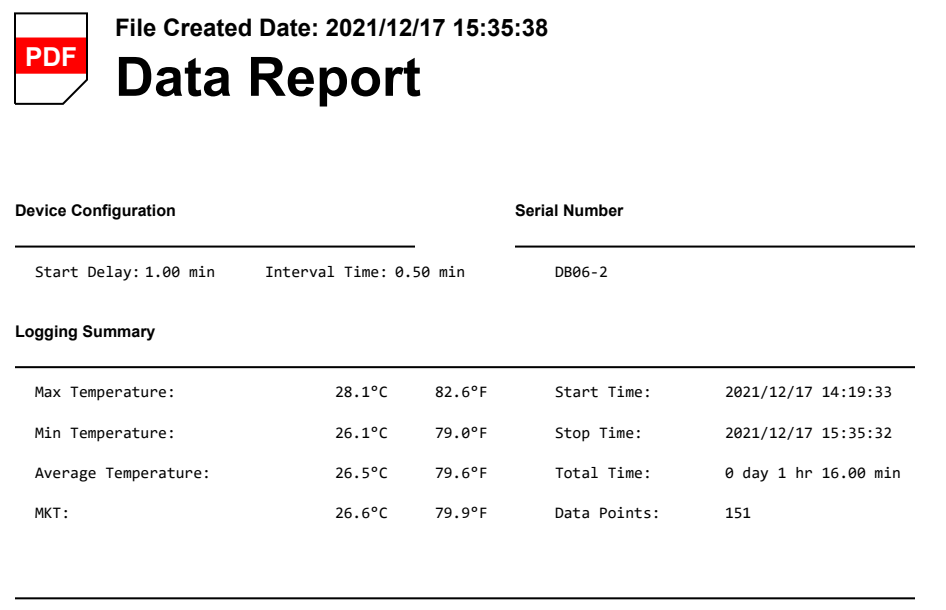

    USB export PDF、CSV file
    Flash 10,000 temp data
    Interval Factory set (30s to 18 hours)
    Battery CR2032 button cell
    Battery lasting time 30、70、135days (recording time 5 mins、10mins、20mins )
    Shelf life 36 months
    Working range -20℃~60℃(-4°F~140°F)
    Temperature accuracy Typical:±0.5℃(0℃~60℃);±1℃(-20℃~0℃)
    (±0.9°F(32°F ~140°F );±1.8°F (-4°F ~140°F )
    Resolution ratio 0.0625℃
    Time zone Factory set, can change per needs
    Package PE
    Waterproof IP IP67
    Weight 10g
