Blue Tooth Beacon DB01 Temperature & Humidity monitoring with LCD USB connect PC or Host Tracker
Blue Tooth Beacon DB01 Temperature & Humidity monitoring with LCD USB connect PC or Host Tracker Blue Tooth Beacon DB01 Temperature & Humidity monitoring with LCD USB connect PC or Host Tracker Blue Tooth Beacon DB01 Temperature & Humidity monitoring with LCD USB connect PC or Host Tracker Blue Tooth Beacon DB01 Temperature & Humidity monitoring with LCD USB connect PC or Host Tracker Blue Tooth Beacon DB01 Temperature & Humidity monitoring with LCD USB connect PC or Host Tracker Blue Tooth Beacon DB01 Temperature & Humidity monitoring with LCD USB connect PC or Host Tracker Blue Tooth Beacon DB01 Temperature & Humidity monitoring with LCD USB connect PC or Host Tracker
  • Blue Tooth Beacon DB01 Temperature & Humidity monitoring with LCD USB connect PC or Host Tracker

  • Manufacturer: EELINK
    Model No: DB01
    Type: BEACON
    COMMUNICATION: BLUETOOTH
     DB01 is a Bluetooth beacon data system with temperature & humidity sensor, It can record data locally or transmit data to the host or cellphone through Bluetooth broadcast, and then upload the data to the server by the host or cellphone, It plays a significant role in logistics and cold chain, helping customers to achieve transparent management, educe costs, ensure safety, and improve efficiency.
  • $13~$17
  • - +
  • Inquiry Us + Sample Order
  • Description Features Specifications Accessories

    DB01 Bluetooth Temperature & Humidity BEACON is a Bluetooth beacon data system for positioning and recording. The product is produced with a plastic shell and ultra-high-precision technology; it uses CR2450 batteries which can be used multiple times, 2 years of battery life with default setting, which is easy to carry and install.

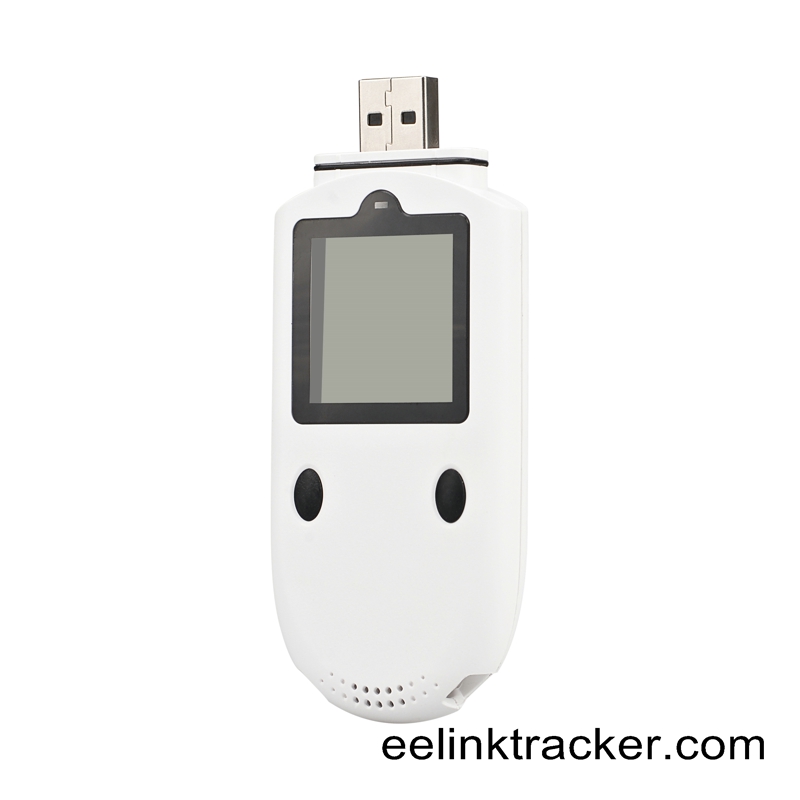

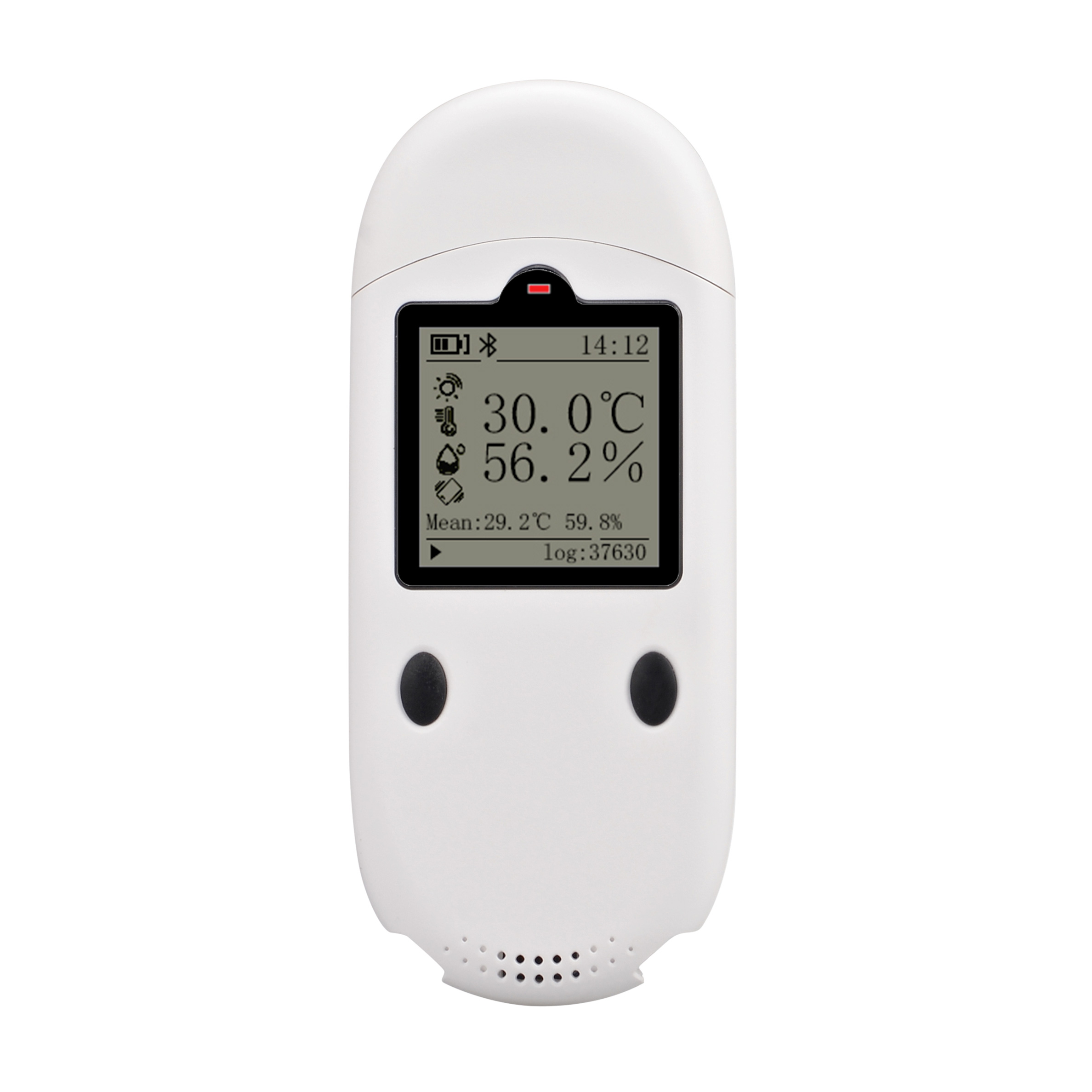

    DB01 BEACON built-in temperature and humidity sensor, with LCD and USB, it can record temperature and humidity data in the local memory, and display on the LCD screen, you can also transfer these data to PC via USB.

    Bluetooth BEACON of DB01 brings amazing and revolutionary functions, which will obviously expand it's application fields. With Bluetooth 5.0 broadcasting, deivce sends data to other receiving BLE devices within 500 meters, which can be sent to a Bluetooth Host or a Smart Phone (data can be seen directly on the phone APP, suitable for short distance communication). Sending data follows Bluetooth transmission protocols such as iBeacon, Eddystone and EELINK-BLE.

    The combination of Bluetooth broadcasting device (Beacon) + Bluetooth IoT gateway (Host) + Cloud platform (Server) can be applied to various indoor positioning scenarios, collecting signals from Bluetooth devices within the range for real-time monitoring and forming big data (Data can be seen on the remote PC or APP by the server on the internet , suitable for ultra-long distance communication). Provide smart, convenient and efficient services.

    DB01 Bluetooth temperature and humidity Beacon plays an important role in specific fields, and can be used for various indoor area positioning, object positioning, IoT cold chain, cold storage monitoring, and safe transportation management of vaccines, drugs, food, and fresh food. It can help customers achieve transparent management, reduce costs, ensure safety and improve efficiency.

    Bluetooth beacon data system


    Temperature Beacon



    ■ Built-in temperature/humidity sensor

    ■ Built-in light sensor

    ■ Built-in acceleration sensor

    ■ Support temperature and humidity alarm, light alarm, vibration alarm, tilt alarm, low battery alarm

    ■ Bluetooth 5.0 broadcast, meanwhile data saved locally

    ■ Bluetooth connection to mobile phone, send data to APP in the phone

    ■ Connect to a Bluetooth host and send data to the server

    ■ Export CSV data files locally via USB

    ■ Replaceable button battery

    ■ 120*120px LCD screen, you can view related data

    ■ Waterproof performance grade IP65

    ■ EELINK Beacon Protocol, compatible with Eddystone


    Battery Voltage 3 VDC

    Battery Capacity 600mAh

    Dimensions (mm) 101(L)X 42(W) X 11.5(H)

    LCD size (mm) 24.58 X 24.58

    LCD Resolution 120*120px

    Bluetooth BLE5.0

    Temperature Arrange -20℃~60℃

    Temperature Accuracy ± 0.2 ℃

    Humidity Arrange 0%~100% RH

    Humidity Accuracy ±2% RH

    Local Storage Capacity 100K sets of data

    Weight 42 g

    CR2450 Button Battery

    Battery cover opener
