Cold Chain Beacon Temperature Data Logger Monitoring Device (BTT01)

Demension:	66.5(L)x56(W)x6.7(H)mm
Manufacturer:	Eelink
Weight:	27g
Broadcast Power:	8db

The model Desigh for monitoring cold chain temperature remotely.

There is no complex installation process for the Temperature Monitoring Devices.

You dont need to replacement battery Frequently,and the device has 3-5 Years Long Standby life.

The perfect solution for monitoring the cold chain temperature.

Inquiry Us + Sample Order

Description Features

The best device to monitor the cold chain Temperature

BTT01 is a Beacon device with high accurate temperature sensor and BLE5.0 technology.When it is installed in cold chain car,which can be as a perfect cold chain temperature monitoring solution!

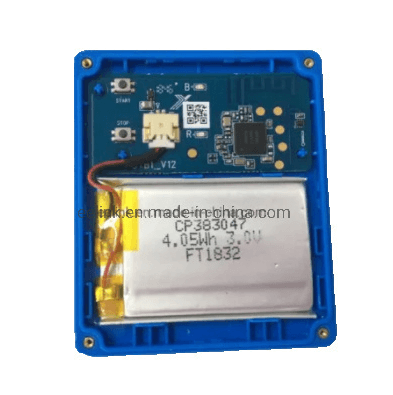

The cold chain temperature monitoring device integrated the excellent Bluetooth 5.0 chipset nRF52840.

It use the Bluetooth way to Broadcasting temperature information.

The Temperature Monitoring Device can be used together with the GPS tracker relay, one relay can match with 24 beacons . That means you can know the all temperature data in the place where the device coverage in.

FAQ

1、How does the cold chain temperature monitoring devices collect data accurately

The device have a highly sensitive wireless temperature sensor,and the humidity sensor.Sensor Accuracy reached ±0.5ºC(0ºC-65ºC);±1ºC(-20ºC-0ºC).What's more,the temperature tracking device can work at the temperature range between -20ºC-60ºC.

2、How does the cold chain monitoring devices transfer data

The device can upload data to the server through wireless Bluetooth.

3、HOW many datas can be cache for the cold chain monitoring devices

It can save 180 days' data package (save one data package every 5 minutes), Data package includes Time，temperature，battery consumption.

4、Can i use the cold chain temperature monitoring devices directly

No，you need to download the software APP before use it.You need to add the related info.Then to scan the device you have installed.

5、How to install the cold chain temperature monitoring device

It is very easy to install，and you just attach it to the suitable place you want to.

The device is not only suitable for monitoring temperature for shipping, but also for various scenarios with temperature requirements such as vacuum cold chain monitoring; cold storage temperature monitoring; warehouse temperature monitoring, etc.

6、What is temperature monitoring in cold chain logistics?

Temperature monitoring devices, such as data loggers or real-time sensors, are strategically placed along the supply chain to continuously monitor and record temperature data. This data helps identify deviations and allows timely intervention to correct problems.

More Parameters and technical question about the Cold chain temperature monitoring devices，please dont hesitate to contact us

Keywords: cold chain temperature monitoring; temperature monitoring devices for shipping; Cold chain temperature monitoring devices

Application summary:

Cold Chain logistics
Food& Medicine Keeping
Food, fruit, flower transportation service
Temperature iOT
Fresh food
Reefers
Pharmacy
Refrigerator
Warehouse management
Milk product
