2G OBD GPS Tracker for Car,support Diagnostic function
2G OBD GPS Tracker for Car,support Diagnostic function
  • 2G OBD GPS Tracker for Car,support Diagnostic function

  • Model No: GOT10
    Manufacturer: Eelink
    Dimensions: 87(L)X41.6(W)X 12(H)
    Stock: NO

    The OBD GPS Tracker for car,which can Diagnostic your vehicle and tracking car in real time.

    The OBD tracking device GOT10 are out of stock,you need to customize the device,please contact us. You can also choose to buy other OBD device from Eelink.

    GOT10 OBD GPS Tracker have Auto Diagnostic function for vehicle,which have OBD port plug in interface,which is east to install and wireless tracking devices.

  • $46.00
  • - +
  • Inquiry Us + Sample Order
  • Description Features Specifications Accessories

    Basic Info of OBD GPS Car tracker GOT10

     The Best 2G OBD GPS Tracker and Diagnostic Device for car. Installing the OBD tracking devices help you tracking your vehicle well.


    GOT10 OBD GPS Tracker Auto Diagnostic OBD GPS Tracker can OBD interface, OBD diagnostic, plug and play,Voltage detection ACC, can be trackered on the platfrom through computer & smart phone.
    Typical application areas : , vehicle maintenance, technology researchers, no need to wiring, especially for private car, logistics enterprises, fleet management, bus management, insurance, power, oil, telecommunications, taxi, car sales, car rental

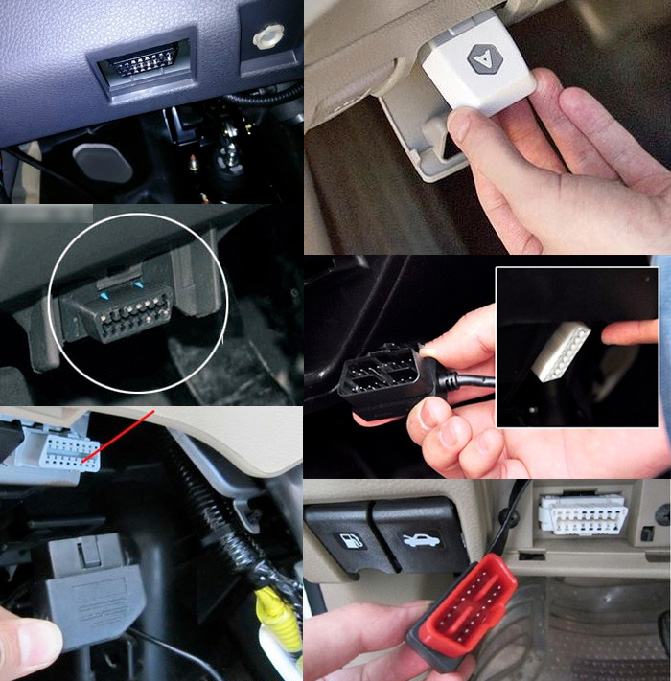

    HOW TO INSTALL MY OBD GPS TRACKER


    It is easy to install,and you just Connect to the OBD interface and enjoy it .

    To see the Picture tutorial


    the Picture tutorial about obd port


    Troubleshooting

    Cannot connect to the platform


    The terminal is never online on the position server after installation . Please check the terminal:
    1)If the power cables are wired correctly? Pay attention to not connect them to the controlling cables of the vehicle.
    2)If the SIM card is installed correctly? Please refer to the installation instructions.
    3)Check the status of the LED indicators. If the terminal is OK, the red LED and the blue LED will intermittently flick.
    4)Inquiry the parameters of terminal via commands and check the accuracy of the parameters.



    Offline status on the platform


    First check if the LED indicators are OK, if cannot check them, you can check the SIM card following next steps:
    1)call the SIM card of the terminal and check if you can hear the connect ring.
    2)Check if the vehicle is in the area where there is no GSM signal.
    3)Check if one terminal or all terminals are offline in the area where terminal is offline. If all terminals are offline, you should ask the network operator. If the network is OK.
    4)Check if the SIM card has enough balance.
    5)If the terminal becomes offline on the last day of one month, please check if GPRS is close.
    6)Inquiry the parameters of terminal via commands and check the accuracy of the parameters.


    Not positioning for a long time
    If the GPS is active, but the terminal cannot be positioned for long time, please check the terminal:
    1)If the vehicle is in the place where there is no GPS signal.
    2)The GSM and GPS signal may be weakened if the terminal is installed in the place with electromagnetic wave absorption material(such as metal blocks).


    Position drift
    Serious position drift will be found in places where GPS signal is poor. Please drive the vehicle to the open places.
    9.5 Command receiving abnormally
    1)Check the instructions format.
    2)Check if the vehicle is in the places where there is GSM signal.
    3)Check if the SIM card is properly installed.

    FEATURES

    ■ Supports quad bands,i.e. 850/900/1800/1900MHz, universal in the world.
    ■ Plug and play, Easy to install.
    ■ GPS precise positioning with A-GPS and uploaded by GPRS regularly, Supports real-time tracking and history route playback.
    ■ Cloud storage OBD data , Vehicle speed, Coolant temperature, fuel consumption and other standard OBD2 diagnostic data, some cars model support read mileage, remaining oil.
    ■ Keelin Tracking Service Platform, Keelin APP Client, SMS query
    ■ Support EELINK protocol, can be integrated to any platform of the customer's



    Model No.: GOT10

    Type: GPS Tracker

    Use: Automotive

    Chip: MEDIATEK

    Certification: ISO2000, ISO14001, ISO/TS16949

    Working Voltage: 12V / 24V DC

    Working/Standby Current: <40mA@12V / <10mA@12V

    DC Dimensions (mm): 87(L)X41.6(W)X 12(H)

    OBD Interface: OBDⅡ SAE_J1962

    OBD Protocol: CAN:ISO15765 | Legacy OBD:ISO 9141-2/ ISO 14230 KW

    Net Weight: 56g

    GPS/LBS Positioning Accuracy: 5m-15m / Above 200m

    GPS / GSM Frequency: 1575MHz & 850/900/1800/1900MHz

    Hot/Warm/Cold Start Time: <3s,<15s,<60s

    Function: GPS/LBS Tracking,OBD Diagnose,Plug & Play

    Packaging: Industrial Packaging Or Box Packaging

    Productivity: 100000 Piece/Pieces per Month

    Brand: Eelink

    Transportation: Air

    Place of Origin: ShenZhen,CHINA

    Supply Ability: 300000 Piece/Pieces per Month

    Certificate: CE/FCC/CCC




    Voltage

    12 / 24 VDC

    Standby Current

    <10mA@12V

    Work Current

    <40mA@12V

    GPS Positioning Accuracy

    5-15m (Depend GPS signal)

    GSM Positioning Accuracy

    About 200m (Depending on density of base stations)

    GPS Frequency

    1575MHz

    GSM Frequency

    850/900/1800/1900MHz

    Hot/Warm/Cold Start time

    <3s,<15s,<60s

    OBD Interface OBDⅡ SAE_J1962
    OBD Protocol CAN:ISO 15765
    Legacy OBD: ISO 9141-2/ ISO 14230 KWP2000

    Dimensions (mm)

    56.5(L)X47(W)X 24.6(H)

    Operating Temperature

    -20℃~70℃

    Operating Humidity

    20%~80%RH

    Weight

    56 g

    Accessory

    OBD Extension Cable ( Optional)
