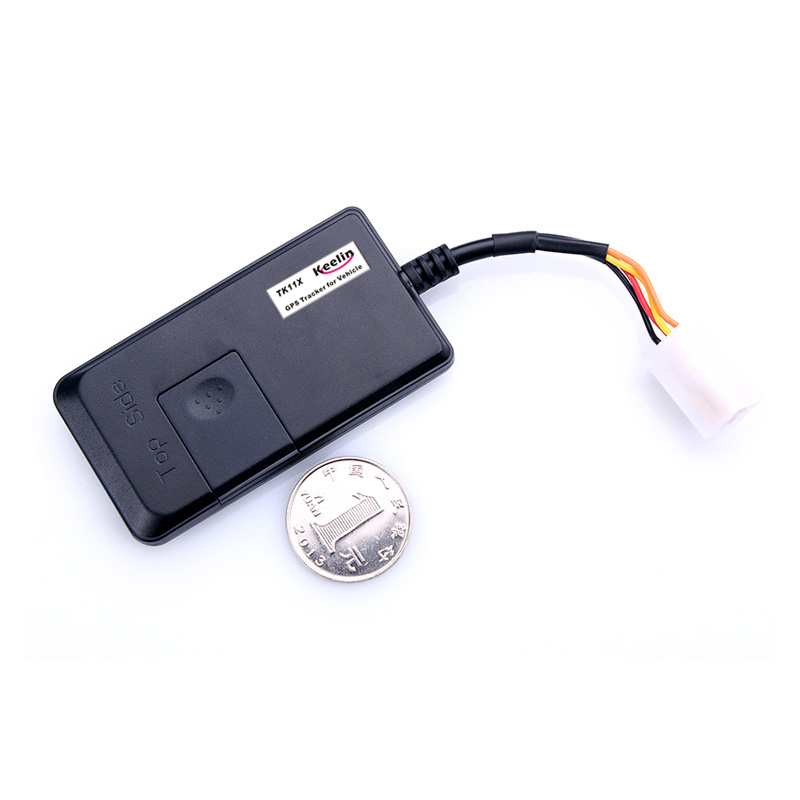

850/900/1800/1900MHz Wired GPS vehicle tracker TK115-Eelink
850/900/1800/1900MHz Wired GPS vehicle tracker TK115-Eelink
  • 850/900/1800/1900MHz Wired GPS vehicle tracker TK115-Eelink

  • Manufacturer: Eelink
    Dimensions (mm): 71.8(L)X38.5(W)X10.5(H)

    GPS tracker TK115 is designed with simple function of positioning. Working voltage is up to 60V DC. No battery is built-in the wired type GPS tracker TK115.


    User can view the status of vehicle on tracking platform system via website and mobile APP.

    Typical application areas : fleet management, bus management, insurance, power, oil, telecommunications, taxi, car sales, car rental,  technology researchers.

  • Write a views (0)
  • Inquiry Now
  • Detailed Description Product Reviews (0)

    Basic info about wired GPS tracker TK115


    Model No.: TK115

    Type: GPS Tracker

    Use: Automotive

    Operating Principle: Interferometric Type

    Carrier Frequency: Dual-Frequency

    Certification: ISO2000, ISO14001, ISO/TS16949

    Working Voltage: 9-60V DC

    Working/Standby Current: <30mA@12V / <10mA@ 12V

    GPS Positioning Accuracy: 5-15m

    GSM Positioning Accuracy: About 200 M

    GSM Frequency: 850/900/1800/1900MHz

    Hot/Warm/Cold Start Time: <3s,<15s,<60s

    Battery Capacity: No Battery

    Dimensions (mm): 71.8(L)X38.5(W)X10.5(H)

    Operating Temperature: -20℃~70℃

    Operating Humidity: 20%~80%RH




    PRODUCT FEATURES

    ■ Supports quad bands,i.e. 850/900/1800/1900MHz, universal in the world.

    ■ Wide Input Voltage:9-60V DC.

    ■GPS precise positioning with A-GPS and uploaded by GPRS regularly, Supports real-time tracking and history track playback.

    ■ Keelin Tracking Service Platform, Keelin APP Client, SMS query

    ■ Supports multiple alarm, acceleration sensor can be added (B models, optional component), so as increase vibration, collision and falling alarm.

    ■ Supports ACC status checking and vehicle status notifying.

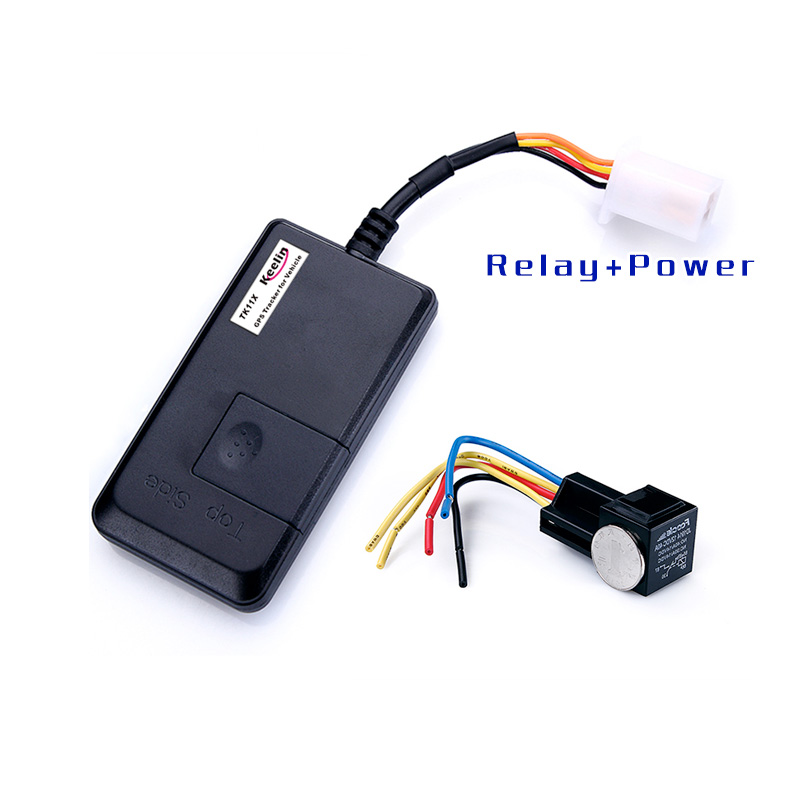

    ■ Use relay to remotely control the vehicle.

    ■ Multiple protocol support, can be integrated to platform of customers

    ■ OTA upgrade firmware




    Parameter of GPS tracker TK115


    Voltage
    12VDC/24VDC//48 VDC/60VDC
    Work current
    <30mA@12V
    Standby Current
    <10mA@12V
    GPS positioning accuracy
    5-15m
    GSM Positioning Accuracy
    About 200 m
    GPS Frequency
    1575MHz
    GSM Frequency
    850/900/1800/1900MHz
    Hot/Warm/Cold Start time
    <3s,<15s,<60s
    Battery Capacity
    no battery
    Dimensions (mm)
    71.8(L)X38.5(W)X 10.5(H)
    Operating Temperature
    -20℃~70℃
    Operating Humidity
    20%~80%RH
    Weight
    42g



    ALERT FUNCTION

    ■ Real-time Tracking
    ■ Route Play Back
    ■ Cut Oil (Need Relay)
    ■ Vibration Alarm
    ■ Collision / Falling Alarm
    ■ Speed Alarm
    ■ Geo-fence Alarm
